SMD Upper Cover Tape Heat Seal Anti-static PC PS PET LED IC Plastic and Paper Good Quality Carrier Tape
Introduction
The cover tape is sealed to the carrier tape to hold the devices in the pockets. We offers a full range of cover tapes to meet various requirements.

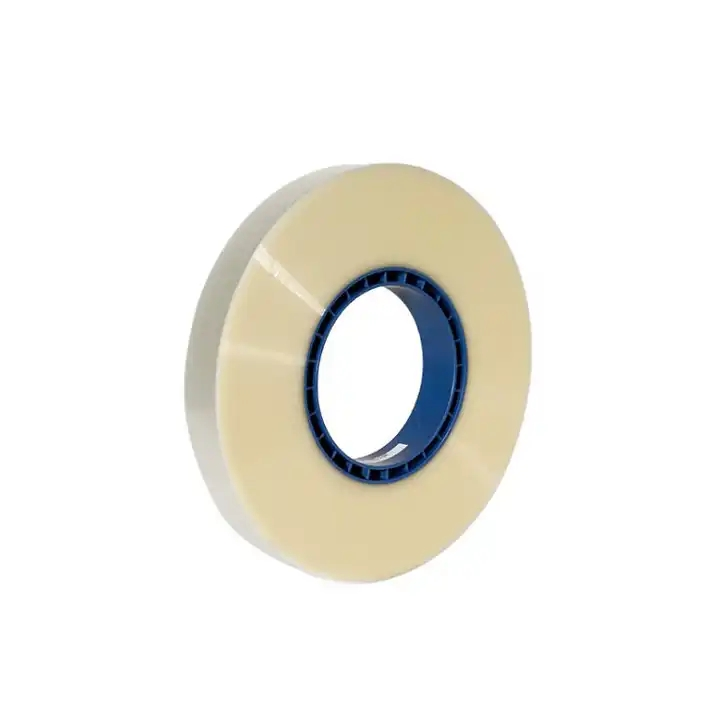

Cover tape specification
| Name | Cover tape |
| Material | Composite material |
| Calculation unit | Meter |
| Tape width | 9.3mm |
| Tape specs | 300M per reel |
| Color | Transparent |
| Sealing pressure | 0.2Mpa |
| MOQ | 200meters |
| Cover tape | hot sealing |
| Reels | Available |
Carrier tape size and matched cover tape
| Carrier Tape(mm) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 | 104 |
| Cover Tape(mm) | 5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 65.5 | 81.5 | 97.5 |
Features
1.Stable pelling force stress, and the component is not moved when peeling off.
2. Tensile Strength:20-110GF
3.Transparent color, convenient for detection during sealing.
4. Multiple options for cover tape width, 5.4/9.3/13.3/21.3/25.5mm,etc.also can be custom according to the requirement.
Carrier tape
PS&PET&PC material,with conductive(antistatic)and non-conductive(non-antistatic) type.
Color:black/transparent
There are many existing molds for conventional universal components,and we can design carrier tapes according to customers’ components samples,which are with accurate dimensions and meet the requirement of EIA-481.
Application
This cover tape is widely used in IC, capacitors, resistors, connectors, micro-transformers, inductors, electronic switches, diodes, transistors, LED chip, Low Power LEDs, Mid/High Power Packages, Domed Packages, LED Modules, Lenses, LED Die,crystals and other surface-mount components packaging, to meet the requirements of efficient, fast and miniaturized production of modern electronic products.
About Packaging
COMPANY PROFILE
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer, We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of sMT/THT production line board handling equipment.We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same time,our experienced engineering team always grasps smart factory's developing directionupdates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
|
|
