SMEMA Compatible PLC Program Control Strong Firm NG OK PCB Unloader

Name: SMEMA Compatible PLC Program Control Strong Firm NG OK PCB Unloader
Brand: HSTECH
Price: 1 USD

China SMEMA Compatible PLC Program Control Strong Firm NG OK PCB Unloader wholesale

Brand Name : HSTECH

Model Number : HS-NK250

Certification : CE

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets per month

Delivery Time : 15~20 work days

Packaging Details : Wooden package

Product name : NG OK PCB Unloader

Transport height : 910±20mm

Transportation direction : L~R, or R~L

Board collect time : Each approx 6 seconds

Magazine change over time : Approx 30seconds

Track fixed side : Front side

PCB thickness : Min 0.6mm

Pitch selection : 1-4(10mm pitch)

Power supply : 220V,50/60Hz,±10%

Power : 0.05kW

Contact Now

Description

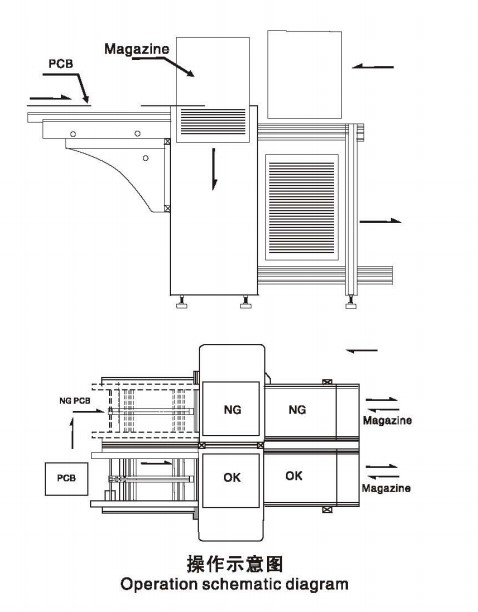

This unit is used after the AOI, by receiving the upstream AOI signal, automatic collect the NG/OK boards separately to relevant magazine.

Features
1.PLC program control.

2.Strong,firm

3.Optional control button or touch screen control up to customers.

4.Top and bottom pneumatic clamps to secure magazine rack.

5. No PCB breakage guaranty during loading&unloading.

6.Automatic NG/OK board separate store NG/OKboards.

7. NG/OK signal from the upstream AOI machine.

8.Self programmed machine error display,different errors has different code,each code has relevant maintenance instruction which paste in the back side of machine door.

9. Enclosed machine design for safety operation.

10, Three color tower light display.

11. SMEMA compatible.

Technical details

SMEMA Compatible PLC Program Control Strong Firm NG OK PCB Unloader

Function	Collect the NG/OK boards separately by receiving the signal.
Transport height	910±30mm
Transportation direction	L~R, or R~L
Board collect time	Each approx 6 seconds
Magazine change over time	Approx 30seconds
Track fixed side	Front side
Operation side	Front side
Conveyor belt	ESD
PCB thickness	Min 0.6mm
Pitch selection	1-4(10mm pitch)
Power supply	220V,50/60Hz,±10%
Power	0.05kW
Air pressure	4-6Bar
Air consumption	Max 15L/min
Number of magazines	Upper:1 magazine, Bottom side:2 magazines
Signal	SMEMA
Options	1, Touch screen control mode. 2, Automatic width adjustment. 3, Magazines quantity up to customer requirement.

Specification

Model	HS-NK250	HS-NK330	HS-NK390	HS-NK460
Efficient PCB length	5050~350250mm	5050~455330mm	5050~530390mm	5050~530460mm
PCB thickness	Min 0.6mm	Min 0.6mm	Min 0.6mm	Min 0.6mm
Magazine size	355320563mm	460400563	535460570mm	535530570mm
Machine dimension	195016001200mm	230017601200mm	250018801200mm	250021601200mm
Weight	220kg	280kg	340kg	380kg

About Packaging

SMEMA Compatible PLC Program Control Strong Firm NG OK PCB Unloader Images
